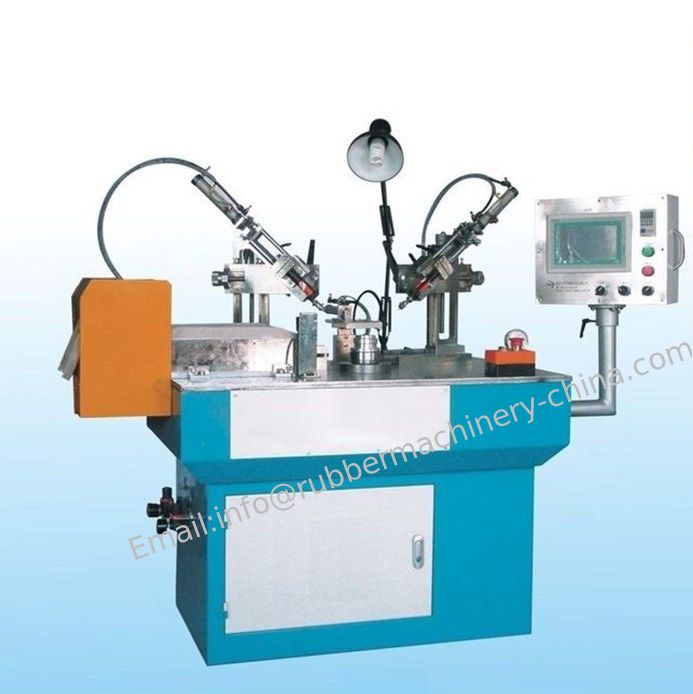

Rubber trimming machine with two knives

Rubber trimming machine with two knives

Multifunctional Edge trimming machine

can cut edge for oilseal,sealcup and others  objects

Manual feed

Automatic cut


1.General description

This machine is used for cutting the edges of soft objects such as oil seals, soft rubber parts and U packing.
Manual feed and auto trim.
Cuts the bevel angle of plain face, inner & outer bevel angle simultaneously.
Auto product blow off by air cylinder. Flash separator separates trimmed oil seal and flash to save time.
It is equipped with a wheel press to press the oil seals being trimmed
Area safety sensor and a safety screen to protect the operator and keep the working area clean.

Because of its sophisticated design, the processing range is from dia10mm to dia150mm, the size of
the thickness can be adjusted, so it can satisfy users’ requirement of various varieties and a wide range.
If the machine has no grip of the work-piece, the knife won’t work, so it can protect the operator,
and avert to mangle the knife.

2.Flow chart

  Here is the flowchart:

Because of its sophisticated design, the processing range is from dia10mm to dia150mm, the size of
the thickness can be adjusted, so it can satisfy users’ requirement of various varieties and a wide
range.
If the machine has no grip of the work-piece, the knife won’t work, so it can protect the operator,
and avert to mangle the knife.

3.Main Functions
1.This machine has nine ways to process. According to the actual requirement, you can arbitrarily choose.
2.You can adjust the knife’s route and the speed. If you want to adjust the two knives’ route, you just adjust the limit switch and the hydraulic buffer which on the cylinder. You can control the knife’s speed by adjusting the throttle which anchor the each end of the cylinder. Adjustment of the knob on the tail of the elegance fixed-speed devices can regulate the speed of the knife cutting into the work-piece.
3.You can adjust the three knives’ cutting angle.
4.Accumulative total the quantity of the artifactitous product.
5.There is no grade to adjust the work-piece’s revolving speed.
6.Protection when it doesn’t grip the work-piece.
7.It has the function of collecting the work-piece automatically.

4.Parameter data:
