INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine;
  • INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine;
  • INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine;
  • INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine;

INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine;

Place of Origin CHINA
Brand Name INTER-CHINA
Certification ISO9001;CE;SGS;
Model Number INC-HB30-FX
Product Details
Type:
PIPE CUTTER, CUTTING MACHINE, CUT TO LENGTH
Material Apply:
Rubber Tubes, Pvc Tubes,soft Tubes, Plastic Tubes
Application:
Cutting Machine;
Cutting Speed:
High
Power:
Electric
Product Description

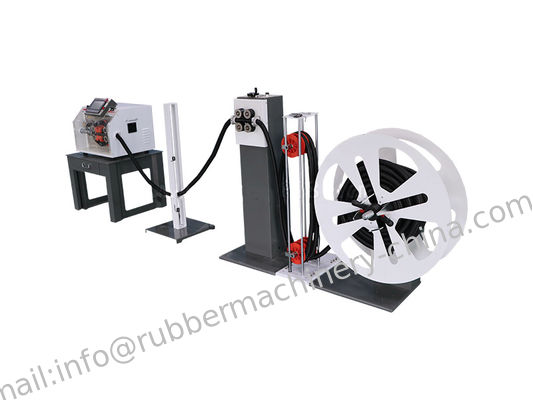

Automatic Corrugated Tube Cutting Machine, Tube cutter; Pipe Cutter; Cutting Machine; Automatic Tube Cutting Machine;


Our automatic corrugated tube cutting machine is mainly used for the quantitative cutting of corrugated tubes, rubber tubes plastic tubes, and other circular tubes and pipes;.
Can cut tubes automatically with even cut and precise length as requested.











Applications:

  • Automotive wiring ;
  • New energy wire harness;
  • Aerospace ;
  • EMU Urban Rail Transit;
  • High voltage cabinet;
  • Other industry use;

INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine; 0INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine; 1INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine; 2INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine; 3INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine; 4









Features:





  • Designed specifically for cutting wire and corrugated pipes, but also for cutting various other tubes;
  • Equipped with 7-inch touch screen, directly input the cutting length, simple operation;
  • Stepper motor control with stable feed and precise length;
  • Efficient, stable and durable;
  • It has a wide range of applications, and can cut pipes with a diameter of up to 60mm;
  • Standard fixed-length cut-off, optional fixed point can be cut at the peak or valley position;
  • Standard aotomatic pay-off stand;
  • Conventional art blade is used for easy replacement and low cost.
  • Optional splitting device can be selected;





                                                                                                                               INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine; 5

1. Pay-off Sensor

The speed of the pay-off reel can be controlled according to the speed of the cutting speed,; the feeding is stable;







                                                                                                                             INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine; 6

2. Bobbin Pay-Off Creel

Synchronous control with the host, synchronous wire feeding, to ensure that there is no resistance to the cutting tube if the material reel is loose, it will automatically stop,





                                                                                                                   INC-HB30-FX Automatic Corrugated Tube Cutting Machine, Tube cutter; Cutting Machine; Automatic Tube Cutting Machine; 7



3. Auxiliary Feeding Device

Equipped with rollers and crimping wheels to achieve smooth feeding.











                                                                                                   VIDEO OF OUR PIPE CUTTER ON YOUTUBE














Technical   Parameters


Structure & Main data Model                                        INC-HB30-FX
Cutting speed (Times/min) ~60 max
Cutting length(mm) 0.1~9999.99
Outer diameter max(mm) 3~30
Cutting precision (mm) 0.5 ( 1%)
Electrical connection Single Phase /AC220V±5%
50/60 Hz
1100W
Actuating Unit Stepper Motors
Feeding Unit Double-sided Pulley Belts;
Cutting Unit Pneumatic

Function & Performance Operation & Control Mode HMI(7")
Motion Controller ( Customized )

Process:
Prefeeding→Feeding (Belt driving by Step Motor )→Cutting(Pneumatic)→Discharging(Tray)


Cutter Cutting angle (degree): 90 ℃
Applicable Pipes &Tubes corrugated tubes&pipes, rubber & plastic(PE,PVC,) tubes;

Packing Infos Equipment Weight(KG) 100
Equipment Size(cm) 145*70*150




Automatic Feeding Machine



According to the Rolls' Size and Weight provided.

















Order Options :



  1. The range of cutting diameter;

  2. Color of Machine

  3. An optional splitting device can be selected;

  4. Optional automatic pay-off stand;
