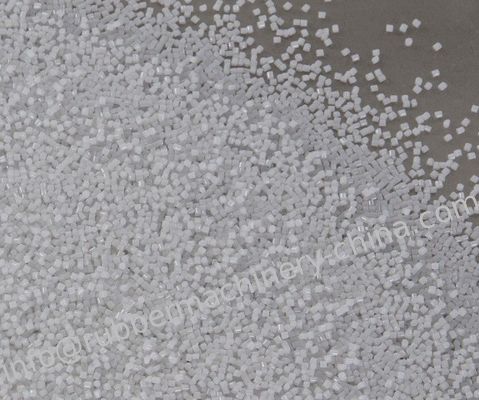

Polycarbonate(PC) Deflashing Media;Cryogenic Blast Media, Cryogenic Deflashing Media, Polycarbonate Blast Media.

Polycarbonate(PC) Deflashing Media;Cryogenic Blast Media; Cryogenic Deflashing Media; Polycarbonate Blast Media.
DEEP-COLD TECHNOLOGICS; ICE - COLD;







To run a cryogenic deflashing/deburring machine, liquid nitrogen, and deflashing media are both required.

The media can be cyclic utilization.



We provide media testing for our deflashing/deburring machines.

Normally, following media sizes for options when treated with different materials and different sizes of products, we provide technical parameter guidance for each of your unique products.







	MEDIA SIZES	inches (LxW)	mm (LxW)
	KG 40	.015" x .015"	.40 x .40
	KG 050	.020" x .020"	.50 x .50
	KG 075	.030" x .030"	.75 x .75
	KG 100	.038" x .038"	1.0 x 1.0
	KG 120	.045" x .045"	1.2 x 1.2
	KG 150	.060" x.060"	1.5 x 1.5
	KG 200	.080" x .080"	2.0 x 2.0

•















Deflashing Media made/supplied by these companies is also possible to be used on our cryogenic deflashing machines.

Any testing is welcomed by us.

































Technical  Parameters of Inter-China Cryogenic Deflashing Machine ;



Main Data	Model	SD-A/AT	SD-M/MT	SD-L/LT	SD-XL/XLT
	Maximum Basket Volume(Litres)	70	120	180	245
	Usable Volume (Litres)	30~45	50~75	80~115	120~155
	Total Power (kW)	5	7	9	13
	Refrigerant	Liquid Nitrogen (LN 2 )
	Operation Temp ( Degree)	50 ~ -130
	Media Type	Polycarbonate
	Power(voltage)	Three phase /AC380V±5%
	Frequency(HZ)	50/60	50/60	50/60	50/60
Main Structure & Components	Control Mode	BUTTON/HMI	BUTTON/HMI	BUTTON/HMI	PLC&HMI
		With alarm sensors to protect operators' safety
	IMPELLER UNIT	Standard	Standard	Standard	Double System
		Max Speed (rpm): ~7200
		Media Throwing Wheel Dia. (mm)
		250	300	300/350	300
	Sorting Device	Tunable Vibration Separator ( 3 Layers)
	Material of Body & Inner Parts	SUS304 /Thermal Insulation Material (PIR )/Soundproof cotton
Packing Infos	Equipment Weight(KG)	1000	1300	1450	1600
	Equipment Size(cm)	100*120*195	120*130*200	145*150*200	160*150*200









The average cycle time can range from 1.5 – 10 minutes depending on the number of parts per batch (which is, dependent on the size of your molded parts); flash thickness; wheel speed; and size of media used.



We have 4 standard models to meet different production demands;



The big capacity of the Basket is unique, which dual brings users totally amazing productivity.











Order Options :

1. Capacity of Basket

2. Size of Impeller ( According to product size)

3. Color of Machine

4. Control Mode: Button or HMI
