|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Wooden Case|
|Delivery Time:||15 WORKING DAYS|
|Payment Terms:||Usually it is 30% by T/T as downpayment, balance by T/T before delivery or L/C at sight.|
|Supply Ability:||30 SETS/MONTH|
|Service::||Accept inspection before shipment and the acceptance criteria of customers' trial sample.|
|Material Apply:||Rubber;Plastic; Tpu And Most Similar Material;||Type:||Trimming Machine|
|Application:||Rubber Processing Machinery|

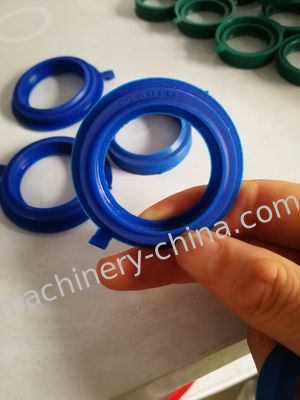

Case Study: Trimming machine for TPU/PU/POLYURETHANE SEALS, Hydraulic oil seal type YA 80/90/100/110/120*70/87*12 /240*14/250*14 cylinder sealing ring
Automatic Rubber trimming machines; Angle Trimmers;
Vacuum type trimming machine for Oil Seal and Rubber Parts
Model Recommend: YA-MM-300
Why choose us:
During the production of a rubber,plastic,polyurethane, or rubber-metal combination production, layers or flaps of unwanted material are created because material overflows from within the mould cavities.
Applications& Advantages :
Features of Inter-China trimmers:
What's the difference between Inter-China Trimmers VS other in market ?
1 .Strong and large platform, equiped with cross slider and high stroke cylinder, which is ensure for more wide ranges for products trimming.
Our single model machine works upto 200/250mm diameter seals and parts, no need to change different models like taiwan machines.
Trimmer head, one pc
2. User friendly colorful touch screen operation mode, more easy and simple for users.
3. With alarm sensors to protect operators' safety. This is very important device for future labors security requirements.
Why should I use the trimming machines to instead of my workers ?
It offers considerable advantages to processors over manual method of trimming ;
When should I use the trimming machines ?
Most small to large rubber and plastic parts;
Ideal for Oil seal with polyurethane material;
How does the Fully the Automated trimming machine work ?
The process is quick ,requiring minimal operator skills.
Technical Parameters :
|Structure & Main data||Model||YA-MM-200||YA-MM-300|
|Nos of head/cutter||2||3|
|Size of blade(mm)||2x3x100|
|R.P.M Machine Spindle||~2800, adjustable|
|Power(voltage)||Three Phase /AC380V±5%|
|Function & Performance||Operation & Control Mode||PLC & HMI|
|Manual feeding and auto offloading|
|5 operation mode||9 operation mode|
|With alarm sensors to protect operators' safety|
|Head/Cutter Part||Cutting angle (degree):~90 (Adjusted)|
|Trimming the plane face, inner and outer bevel angle at the same time.|
|Trimming Range(mm)||Ø3~200 ( Horizontal)
~180 ( Vertical)
|Range of size (inch)||Ø.118~7.875(Horizontal)
|Precision of Main shaft(mm)||±0.01 (radial direction)
±0.02 (head face)
|Packing infos||Equipment Weight(KG)||320||400|
Order Options :
Nos of head;
Size of trimming range;
Color of Machine;
Auxiliary feeding device;
Auxiliary unloading device;
For more details, please contact us freely !!!
