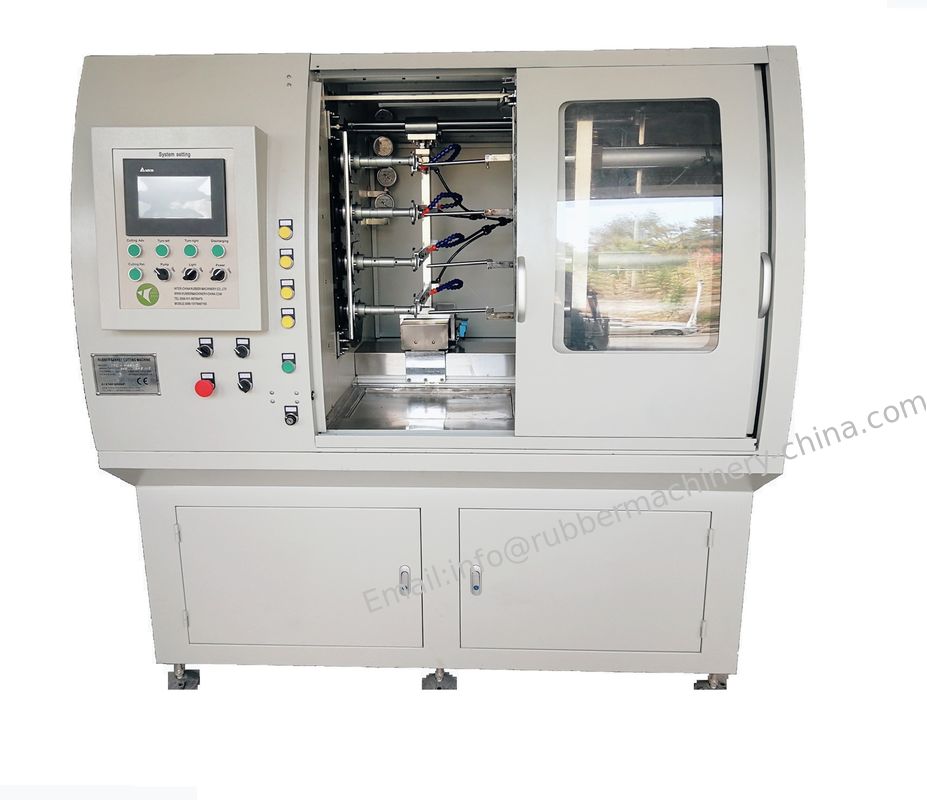

Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters;
  • Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters;
  • Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters;
  • Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters;

Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters;

Place of Origin CHINA
Brand Name INTER-CHINA
Certification CE, ISO9001,SGS;
Model Number INC-400-4;Advanced model;
Product Details
Type:
Cutting Machine; Slicing Machine;
Material Ranges::
Rubber,silicones,abs,plastic,tpu,foam; Rigid And Half Ragid Objects
Shape Ranges::
Circular,round,rectangle,square;tubing Shapes
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiated
Packaging Details
Wooden Case
Delivery Time
15 days
Payment Terms
T/T; L/C at sight.
Supply Ability
30 SETS/MONTH
Product Description




Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers;

Gasket Cutters; Seal Cutters;





Why Choose Us?

Gaskets and seals are widely used in modern industry and life.

The traditional method to produce gaskets is mainly with molding machines or press, but more and more flashes appear due to the difference of multi-cavity and aging of mold, as a result of raw material waste and labor consumption.

About 10 years ago, our engineers noted this situation and found that the kind of plain gaskets and seals can be cut off from tubes instead of traditional one-step molding.

In this way, can eliminate the burrs problem and highly improve the production capacity.

Thus the reason we designed our mandrel cutting machines, a kind of precision machines for cutting gaskets and O-rings from molded or extruded tubes/pipes/hoses made of rubber/plastic/silicone/polyurethane/foam or similar hard and half-hard materials.

The distinguishing features are the unique cutting method brings together high output and the highest cut quality.



Making use of our cutting machines can greatly improve efficiency and advance precision. The precision of cutting running accuracy is 0.01mm, resetting accuracy is 0.01mm, deviation ±0.03mm, and cutting surface luster can reach.













How does the process of mandrel cutting machine?



Machine process chart:







Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters; 0

PROCESS:
To produce the plain section gaskets, rubber tubes – already cut to length – are stretched onto mandrels. Loading and unloading of the tubes onto the mandrels is done quickly by a special unit and without any particular skill being required.

A knife carriage travels along the tubes, cutting the rings to the required length, either with slotting tools or circular knives.

The use of the most modern servo-technologies makes the mandrel machines even more versatile: knife penetration speed and carriage advance are fully free-programmable – for optimal processing of materials with different characteristics.

Automaticlly discharging .














Applications & Advantages:




1. Can cut out a wide range of dimensions and thicknesses rings and slices …

2. Both Regular shapes and irregular shapes rings and slices can be cut off….

3. Both molded/extruded pipes/tubes/hoses are possible to be cut...

4. A wide range of materials of Rubber/Plastic/polyurethane/Silicones /Latex /foam ….etc. Or similar hard & half-hard materials...

5. Multi-Mandrels structure realizes the exact high precision and large volume along with low cost..











Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters; 1Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters; 2Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters; 3Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters; 4















Technical parameters:

                                                                                                                                            Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters; 5



PERFORMANCE
Model No (Advanced Series )         INC-200-4         INC-400-4
Nos of Spindle/Mandrel 4
Cutting rate max. 140 x 4 cuts/min
Mandrel Rotation Speed 0~2800 r/min
Cutting Precision ≤±0.03mm
Cutting ranges
(Tailor-made is accepted)
Diameter Φ2.8mm~Φ230mm
Length Standard≤150mm Large sized≤350mm
Thickness ≤28mm
SPECIFICATIONS
Compressed Air Consumption 20 L/min
Atmospheric Pressure 0.5MPa~0.8MPa
Working Vacuum Degree ≤-0.035MPa
Power Source 1.Single Phasex220V/50/60HZ±5%
2.Three Phase x380V/50/60HZ±5%
Total Power 3.5~4KW
Device Weight ≈820 KGS ≈880 KGS
Device Size (L×W ×H) 1400×900×1650mm 1500×900×1650mm
SPARE PARTS
Cutting Tools (1) circular knife:Φ60×Φ25.4×0.35mm
(2) strip knife:65×7×0.3mm
Cutting Mandrel/spindle

fit product size for cutting





Reference: daily 70,000~80,000 gaskets can be finished.









Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters; 6Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters; 7Mandrel Cutting Machine Four Spindles; Cutting Machine for gaskets and washers; Seal Cutters; Gasket Cutters; 8















Order Options:

  1. Nos of mandrel: 1/2/3/4 are available;

  2. Machine Painting Color;

  3. Range of Cutting Length;

  4. Range of Cutting Diameter;

  5. Water cooling system;

  6. Tail Bracket (As the supporting device for longer-length products)

  7. Auxiliary pushing device for loading;

  8. Auxiliary splice device for unloading;
