| Place of Origin: | CHINA |
| Brand Name: | INTER-CHINA |
| Certification: | ISO9001;CE;SGS; |
| Model Number: | YH-SM-30,YH-SM-50, |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Wooden Case; |
| Delivery Time: | 15 DAYS |
| Payment Terms: | Usually it is 30% by T/T, pay the balance by T/T before delivery or L/C at sight. |
| Supply Ability: | 30 SETS/MONTH |
| Service:: | Accept inspection before shipment and the acceptance criteria of customers' trial sample |
| Type: | Oil Seal Machine; Spring Loading Machine; | Material Availiable: | Rubber,PTFE,NBR,HNBR,ACM,VMQ,VTION SILICONE TEFLONG |
|---|---|---|---|
| Use On: | Construction Machinery Industry, Injection Molding Machine Industry, Metallurgical Industry, The Press Industry, Engineering Machinery Oil Cylinder Factory, Automobile Industry, Metallurgy, Oil Cylinder Factory, Etc |

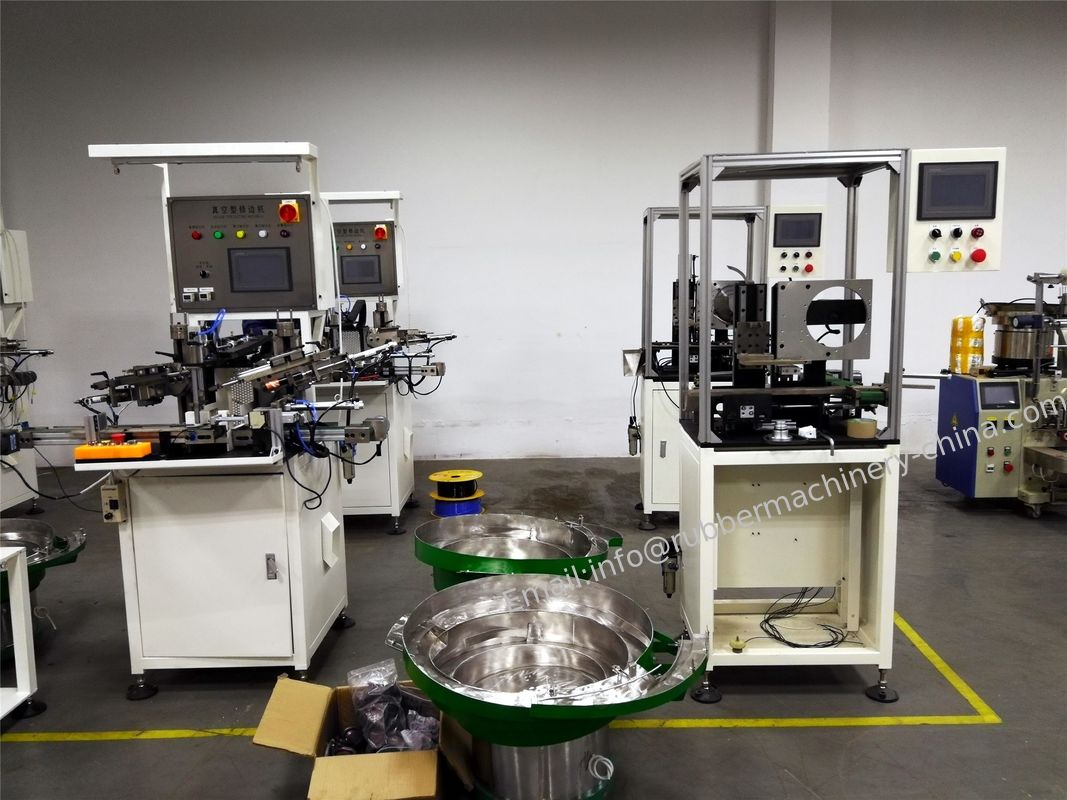

Auto Spring Loading Machine For Oil Seals,Skeleton Oil Seal,Hydraulic oil Seal;
For NOK. CFW .LYO .CHR .PHLE. SIMRIT
This machine is suitable to load the spring with high volume oil seals in the production line.
Features:
VIDEO OF OUR SPRING LOADING MACHINE ON YOUTUBE
Technical Parameters
| Structure & Main data |
Model |
YH-SM-30 |
YH-SM-50 |
| Oil seal ranges | 10~30 | 30~60 | |
| Spring range (mm) | ~25 | ~45 | |
| Air system (Mpa) | Requires 0.5~0.8 (80 psi)good clean compressed air; | ||
| Electrical Connection | Single Phase /AC220V±5% 50/60 Hz 300W |
||
| Feeding way of Spring | Magnet plate | Magnet plate | |
| Feeding way of Seal | Vibrating tray | Vibrating tray | |
| Function & Performance | Operation & Control Mode | PLC & HMI | |
| Auto feeding and auto unloading, fully automatic process. | |||
| Process: OIL SEAL: Sorting( Vibrating Tray)→Transmit (Converyor)→Feeding SPRING: Sorting (Turnover device)→Transmit (Magnetic device)→Feeding OIL SEAL & SPRING→Fixing →Detection→Filling Oil (Option)→Discharging |
|||
| Fixing | The air cylinder pushes the jig to combine the oil seal with the spring at an extremely fast speed | ||
| Detection | Automatically detects spring loading via probe | ||
| Efficiency (pcs/min) | 15~25 | 10~20 | |
| Packing infos | Equipment Weight(KG) | 320 | 380 |
| Equipment Size(cm) | 105*80*160 | 125*90*165 | |
Order Options :
Size of Converyor;
Color of Machine;
Control Mode: Button or HMI;
Double/ Single Spring Loading device;
Oil filling/ejector ;
