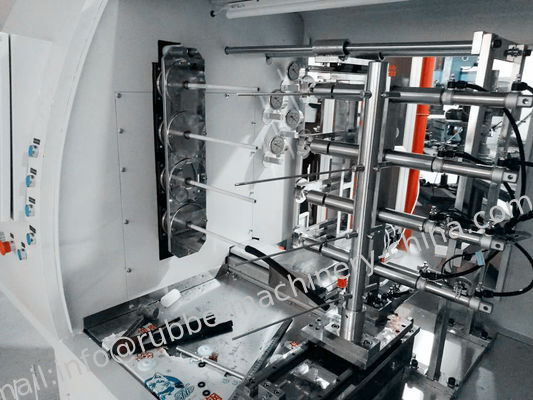

Customized cutting machine for extruded hoses with 250mm length

Customized cutting machine for extruded hoses with 250mm length

    • Customized cutting machine for extruded hoses with 250mm length
    • Customized cutting machine for extruded hoses with 250mm length
    • Customized cutting machine for extruded hoses with 250mm length
  • Customized cutting machine for extruded hoses with 250mm length

    Product Details:

    Place of Origin: CHINA
    Brand Name: INTER-CHINA
    Certification: CE, ISO9001,SGS;
    Model Number: INC-400-4;Advanced model;

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiated
    Packaging Details: Wooden Case
    Delivery Time: 15 days
    Payment Terms: T/T; L/C at sight.
    Supply Ability: 30 SETS/MONTH
    Service:: Free Sample Trial;
    Tags:: cutting machines;Mandrel cutting machine;Rubber gaskets:O-rings;Slices;slitting machine
    Detailed Product Description
    Type: Cutting Machines Material Ranges:: Rubber,silicones,abs,plastic,tpu,foam; Rigid And Half Ragid Objects
    Shape Ranges:: Circular,round,rectangle,square;tubing Shapes

    Why choose US

    • Our mandrel cutting machines are precision machines for cutting gaskets and O-rings from molded or extruded tubes/pipes/hoses made of rubber/plastic/silicone/polyurethane/foam or similar hard and half-hard materials.
    • The distinguishing features are the unique cutting method and the high cut quality.
    • Making use of our cutting machines can greatly improve efficiency (saving multi-cavity filling and liberating of labor) and advance precision (due to the difference of multi-cavity and mould aging). The precision of cutting running accuracy is 0.01mm, resetting accuracy is 0.01mm, deviation ±0.03mm, cutting surface luster can reach , these can greatly save multi-mode cavity side of waste materials.





    Machine Process Chart :



    Customized cutting machine for extruded hoses with 250mm length





    Applications & Advantages:


    1. Can cut out a wide ranges of dimensions and thicknesses rings and slices …

    2. Both Regular shapes & Irregular shapes rings and slices can be cut off….

    3. Both molded/extruded pipes/tubes/hoses are possible to be cut...

    4. A wide range materials of Rubber/Plastic/polyurethane/Silicones /Latex /foam ….etc.

    Or similar hard & half-hard materials...

    5. Multi-Mandrels structure realizes the exact high precision and large volume along with low cost..







    Technical parameters:

                                                                                                                                                Customized cutting machine for extruded hoses with 250mm length



    PERFORMANCE
    Model No (Advanced Series ) INC-200-4 INC-400-4
    Nos of Spindle/Mandrel 4
    Cutting rate max. 140 x 4 cuts/min
    Mandrel Rotation Speed 0~2800 r/min
    Cutting Precision ≤±0.03mm
    Cutting ranges
    (Tailor-made is accepted)
    Diameter Φ2.8mm~Φ230mm
    Length Standard≤150mm Large sized≤380mm
    Thickness ≤28mm
    SPECIFICATIONS
    Compressed Air Consumption 20 L/min
    Atmospheric Pressure 0.5MPa~0.8MPa
    Working Vacuum Degree ≤-0.035MPa
    Power Source 1.Single Phasex220V/50HZ±5%
    2.Three Phase x380V/50HZ±5%
    Total Power 3.5~4KW
    Device Weight ≈820 KGS ≈880 KGS
    Device Size (L×W ×H) 1400×900×1650mm 1500×900×1650mm
    SPARE PARTS
    Cutting Tools (1) circular knife:Φ60×Φ25.4×0.3mm
    (2) strip knife:65×7×0.3mm
    Cutting Mandrel/spindle

    fit product size for cutting





    Order Options:

    1. Nos of mandrel: 1/2/3/4 are available;

    2. Machine Painting Color;

    3. Range of Cutting Length;

    4. Range of Cutting Diameter;

    5. Water cooling system;

    6. Tail Bracket (As the supporting device for longer length products)

    7. Auxiliary pushing device for loading;

    8. Auxiliary splice device for unloading;



    For more details, please contact us freely !!!











    Tags:

    Mandrel Cutting Machine;Slicing Cutting Machine;Precision machines for cutting off rings and slices;Oil filter sealing gasket making machine;
    Slice machine; Slicer;Circular knife cutting machines for cutting gaskets;Rubber gasket cutting machine;Gasket making mahcine;

    Rotary style gasket cutter;Rotary cutting machine; Rubber slitting machine; Machines for hose and tube processing;
    Cutting machine for hoses and tube processing; Machine for rubber and plastic processing; Cutting machine for gaskets and o-rings;
