    Product Details:

    Place of Origin: CHINA
    Brand Name: INTER-CHINA
    Certification: ISO9001;CE;SGS;
    Model Number: YA-MM-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiated
    Packaging Details: WOODEN PACKING
    Delivery Time: 15 WORKING DAYS
    Payment Terms: Usually it is 30% by T/T, pay the balance by T/T before delivery or L/C at sight.
    Supply Ability: 30 SETS/MONTH
    Tigs: Trimmers; Trimming Machines; Angle trimmer;
    Detailed Product Description
    Service:: Free Sample Trial; After-sales Service Provided; Material Apply: Rubber;Plastic; Tpu And Most Similar Material;





    Why choose us:



    During the production of a rubber,plastic,polyurethane, or rubber-metal combination production, layers or flaps of unwanted material are created because material overflows from within the mould cavities.

    •
    • This excess material is commonly known as “flash””burrs”;The excess material(or flash) almost always needs to be effectively removed before the product is deemed to be used for purpose;
    •
    • Many factories still use manual methods to deflash their products, which is low efficiency, time-consuming, labour intensive or even dangerous, and are not always effective in producing a high quality finished part with all the flash sufficiently removed.
    •
    • Considering about the keep increasing labor cost and quality products required by users; Manufactures even work hard, will lose the competitiveness and market, traditional manual methods will be out of use sooner or later;
    • Our vacuum trimming machines are simple and automated machine for trimming edges/angles of all kinds of rubber, plastic & sorts of soft half-hard subjects/parts, as well as material of elastomer polyurethane; Especially for to the meet the require of precision edges/angles;
    • Our Angle Trimmer machines are available as a one, two or three head model.
    • These options have been specifically designed to produce a high quality finished product and to significantly increase processors’ operational productivity, and reduce labour costs as well;



    Angle trimmers; Angle trimming machines

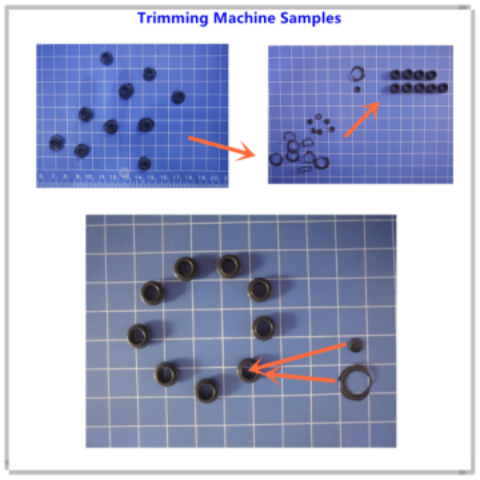

    Above photo is the typical use of trimming for 2 head/cutters;





    Angle trimmers; Angle trimming machines

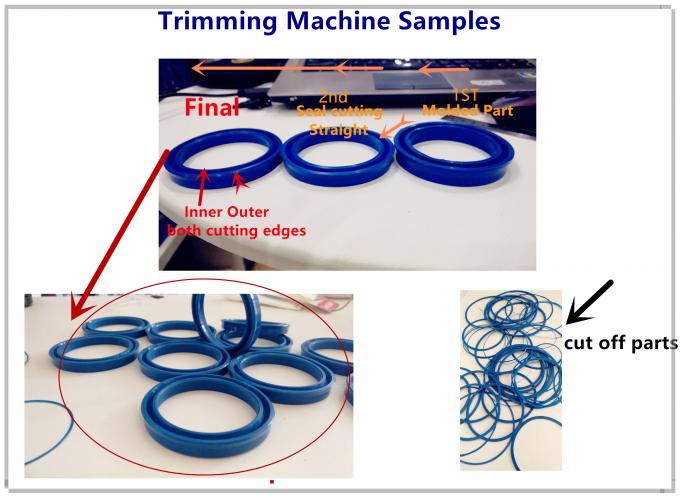

    Above photo is the typical use of trimming by 3 head;











    Applications& Advantages :



    • Ideal for cut off burrs/waste edges for rubber/plastic and polyurethane/pu;
    • A safe, affordable and automated process;
    • Suitable for the effective trimming of a wide range sizes parts;
    • Able to cut the bevel angle of plain face, inner & outer bevel angle at a time;
    • Ideal for use in the automotive, oil and gas, aerospace, medical ,electronic and general rubber parts;
    • Quick, simple and effective , its about 6~7 times efficiency compared to manual work;





    Features:



    • 1.With the design of vacuum adsorption and blowing, making it easy to realize the automated installation of product onto spindle/mandrel by the mechanical arm, greatly improving efficiency;Vacuum chucks have a "part secure" vacuum gauge and sensor switch, which prevents the cycle starting until the vacuum is at full strength;
    • 2.These Angle Trimmer machines are available as a one, two or three head model;
    • 3.The cutting heads are independently adjustable for angle, stroke, length, stroke speed, position of cut and position to retract.
    • 4.The heads are designed to accept front mount or rear mount knife holders providing a wide range of cutting combinations and a total angle of adjustment of +5° to -95° (100° total  adjustment)  from straight up. For such a wide ranges almost Meet all the angles cutting demand;
    • 5.PLC controller, automatic feeding and unloading. No need to change clamping apparatus for the next trimming;
    •

    • 6.Use the friendly HMI, all parameters can be seen clearly and it is quite easy to operator.
    • 7.All electrical components and pneumatic components adopt import and domestic well-known brand products, assuring the stability and reliability of long-term usage;





    Why should I use the Fully Automated trimming machines :


    • These trimming machines not only can realize the cutting for edges, but also offer a quick and cost effective trimming solution to a wide range size products require precision angles;
    •
    • It offers considerable advantages to processors over manual method of trimming ;
    • No experience required to operator;
    • Reduction in production time;
    • Reduction in labor cost;
    • Enhanced part quality;
    • Improved operator safety;







    When should I use the Fully Automated trimming machines?



    • These trimming machines not only can realize the cutting for edges, but also offer a quick and cost effective trimming
    • solution to a wide range size products require precision angles;
    • Most small to large rubber and plastic parts;
    • Ideal for Oil seal with polyurethane material;
    • Electronic components;
    • Medical items;



    How does the Fully the Automated trimming machine work ?





    • The process is quick ,requiring minimal operator skills;
    • 1.A size fitted mandrel holder installed on the machine spindle;
    • 2.Adjust the head/blade with the required cutting degree;
    • 3. The strong vacuum system to absorb the piece of product closely to spindle, Meanwhile the cutters to do the cutting job with required cutting performance;

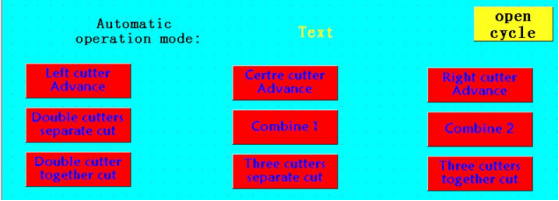

    • 4. Parameters setting through the PLC touch screen, which is simple operation and easy
    • adjustment.
    • 5. Heads can be individually cycled to move, extend stroke, rotate spindle, cut, retract and stop in a manual or single cycle mode. The machine has several modes of automatic cycling. Multiple heads can be set to cut at the same time, or each head can run by itself. All automatic cycle starts are actuated by ergonomic touch button.



    Angle trimmers; Angle trimming machines





    Technical Parameters



    Structure & Main data Model YA-MM-200 YA-MM-300
    Nos of head/cutter 2 3
    Vacuum degree(Mpa) 0.5~1
    Size of blade(mm) 3x3x60
    R.P.M Machine Spindle ~3000
    Power(voltage) Single phase /AC220V±5%
    Motor(kw) 0.75 1
    Frequency(HZ) 50/60 50/60

    Function & Performance Operation & Control Mode PLC & HMI
    Manual feeding and auto unloading
    5 operation mode 9 operation mode
    With alarm sensors to protect operators' safety
    Head/Cutter Part Cutting angle (degree):~90 (Adjusted)
    Trimming the plane face, inner and outer bevel angle at the same time.
    Efficiency (pcs/min) 10~25 10~20
    Trimming Range(mm) Ø3~200 (Vertical)
    ~160 ( Horizontal)
    Ø3~250 (Vertical)
    ~180 ( Horizontal)
    Precision of Main shaft(mm) ±0.01 (radial direction)
    ±0.02 (head face)

    Packing infos Equipment Weight(KG) 280 320
    Equipment Size(cm) 105*80*152 115*80*162





    Order Options

    1. Nos of head;

    2. Size of trimming range;

    3. Color of Machine;

    4. Auxiliary feeding device;

    5. Auxiliary unloading device;



    Tags:



    Trimmers; Trimming Machines; Angle Trimmers; Rubber Trimming Machine;

    Mandrel Cutting Machine;Slicing Cutting Machine;Precision machines for cutting off rings and slices;Oil filter sealing gasket making machine;
    Slice machine; Slicer;Circular knife cutting machines for cutting gaskets;Rubber gasket cutting machine;Gasket making mahcine;

    Rotary style gasket cutter;Rotary cutting machine; Rubber slitting machine; Machines for hose and tube processing;
    Cutting machine for hoses and tube processing; Machine for rubber and plastic processing; Cutting machine for gaskets and o-rings;
