    Product Details:

    Place of Origin: CHINA
    Brand Name: INTER-CHINA
    Certification: CE, ISO9001,SGS;
    Model Number: All models

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiated
    Packaging Details: Wooden Case
    Delivery Time: 15 days
    Payment Terms: T/T; L/C at sight.
    Supply Ability: 30 SETS/MONTH
    Service:: Free Sample Trial;
    Tags:: cutting machines;Mandrel cutting machine;Rubber gaskets:O-rings;Slices;slitting machine
    Contact Now
    Detailed Product Description
    Type: Cutting Machines Material Ranges:: Rubber,silicones,abs,plastic,tpu,foam; Rigid And Half Ragid Objects
    Shape Ranges:: Circular,round,rectangle,square;tubing Shapes

    Product name Packing Gaskets, Flange Gaskets,Gaskets, seal, flat seal
    Specification

    Diameter: 60mm ~ 100mm

    Thickness:  1mm ~ 50mm



    Material SBR
    Usage sealing, water resistance,
    Industry  Packing
    Recommend machine model INC-200-1
    Capacity 20,000~30,000 PCS/10HOURS





    Design Purpose:



    This gasket is to be used as flange gaskets, packing gaskets and wide ranges for industry purpose.









    Advantages of our machine:



    1.High precision for each cut. Ensure the quality for each unit.

    2.High efficeincy compared to traditional cutting method.

    3.Not only for flat section, our cutting machine can do fine cutting job on rasied parts.

    4. A new method of making gaskets, free of flashes & burrs;;

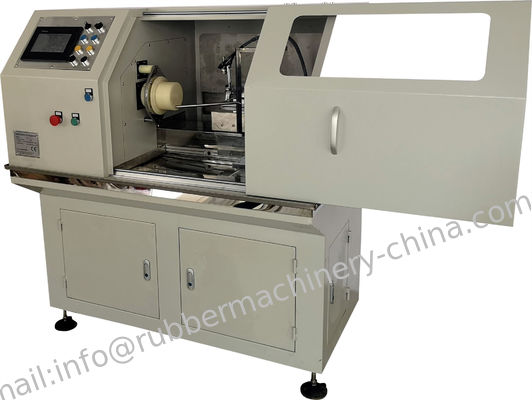

    How does the process of this mandrel cutting machine?



                                           Case Study - Cutting machine for Rubber Flange Gaskets Packing Gaskets Valves gaskets







    PROCESS:
    To produce the plain section gaskets, rubber tubes – already cut to length – are stretched onto mandrels. Loading and unloading of the tubes onto the mandrels is done quickly by a special unit and without any particular skill being required.

    A knife carriage travels along the tubes, cutting the rings to the required length, either with slotting tools or circular knives.

    The use of the most modern servo-technologies makes the mandrel machines even more versatile: knife penetration speed and carriage advance are fully free-programmable – for optimal processing of materials with different characteristics.

    Automaticlly discharging .

                               Case Study - Cutting machine for Rubber Flange Gaskets Packing Gaskets Valves gaskets





    Technical   parameters:



                                                                                                                                                      Case Study - Cutting machine for Rubber Flange Gaskets Packing Gaskets Valves gaskets





    Our standard machine is suitable for this sample.



                                                              Case Study - Cutting machine for Rubber Flange Gaskets Packing Gaskets Valves gaskets







    Order Options:

    1. Nos of mandrel: 1/2/3/4 are available;

    2. Machine Painting Color;

    3. Range of Cutting Length;

    4. Range of Cutting Diameter;

    5. Water cooling system;

    6. Tail Bracket (As the supporting device for longer length products)

    7. Auxiliary pushing device for loading;

    8. Auxiliary splice device for unloading;

















    Free Samples Trial is available, please contact us freely !!!
